Backup Wizard

Note: Ensure that the CNC agent is installed and running on all target endpoints. If you need assistance downloading or installing this agent, please see.

• Select 'Configuration' > 'Computers' from the left hand Navigation pane

OR

• Click 'Computers' shortcut at the Configuration area

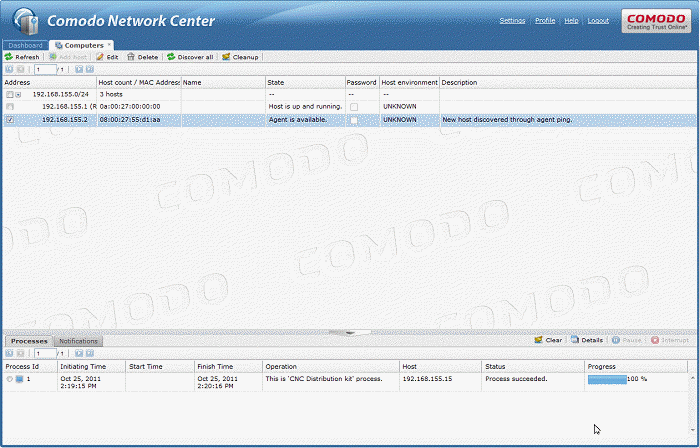

• The 'Computers' tab interface will open

The menu bar structure enables you to easily add host, delete or edit host, discover all available hosts from the network, and clears all invalid or completed processes.

The 'Computers' tab of  Comodo Network Center is divided into the following areas

Icon	Description
	Refreshes the computers list in the subnet
	Allows user to add available Host computers
	Allows you to edit computer properties - IP address, MAC Address
	Delete target computers from the subnet
	Implements a search of any available computers in subnet
	Clears all tasks on the selected target machine

'Computers' tab interface divides into six columns:

• Address - Displays all IP addresses discovered in the subnet

• Host count/MAC Address – Displays unique MAC host Address

• Name - Displays each computer's name

• State - Reflects the status of each host machine: Agent is available, Host is unreachable, Host is up and running, Agent is available, but busy

• Password – Indicates if a host administrator password has been specified.

• Host environment - There are three possible environments: Unknown, Windows, WinPE

• Descriptions – Reflects notifications

• Checkbox an available agent.

Note: The CNC agent must be installed on target endpoints before any backup can commence.   CNC also requires an administrator’s password for each target machine before it can begin the backup operation. Click ‘Edit’ to configure host settings, specify the required passwords and click ‘OK’.
