Network Configuration

Here you can configure CNC to work in a selected subnet, adjust the embedded DHCP server or use an external one.

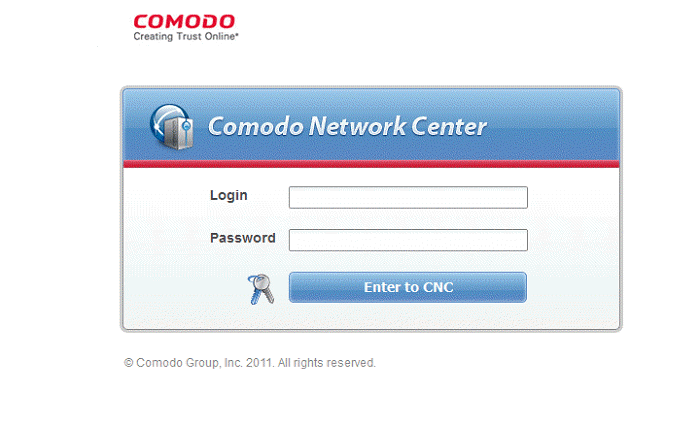

• Log in to CNC server to configure CNC

Note: By default the predefined Login and Password to enter the system is cnc. We strongly recommended you to configure a new Login and Password for your safety.  To learn how to get an administrative Login and Password click here.

The Configuration Interface will open. Comodo Network Center Configuration includes four easy steps:

• Step1 - Select Interface

• Step2 -  Select DHCP

• Step3 -  DHCP Config

• Step4 -  Setup Summary

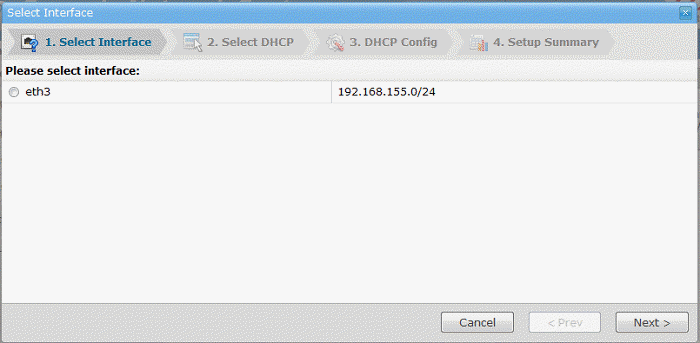

Step 1 - Select Interface

The first stage is supposed to detect and allow you to select CNC interfaces.

• Click 'Next' to continue the configuration process or 'Prev' button to return to a previous step


To configure the network using CNC DHCP

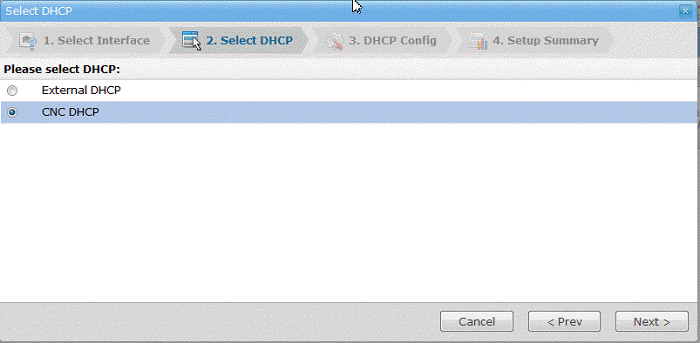

Step 2 -  Select DHCP

• Select the type of DHCP server

There are two types of DHCP server:

• External DHCP – Select this option if a DHCP server is already in use on the IP subnet

• CNC DHCP – Select this option if there is no DHCP server  available on the IP subnet

• Click 'Next' to continue the configuration process or 'Prev' button to return to a previous step

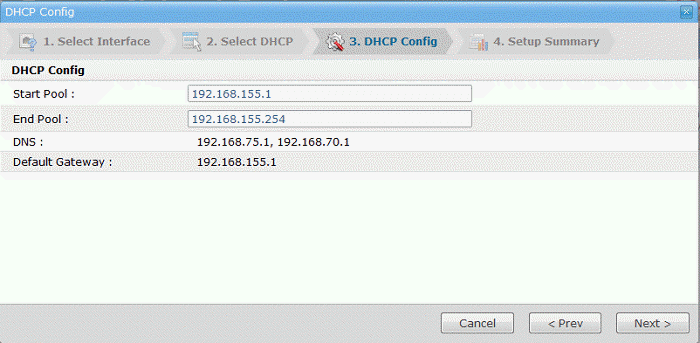

Step 3 -  DHCP Config

The DHCP Configuration interface will open. Network Center's configuration interface includes customizable (Start Pool, End Pool and assign IP Address ONLY from this range) and options automatically detected by CNC (DNS, Default Gateway)
.

• Click 'Next' to continue the configuration process or 'Prev' button to return to a previous step.

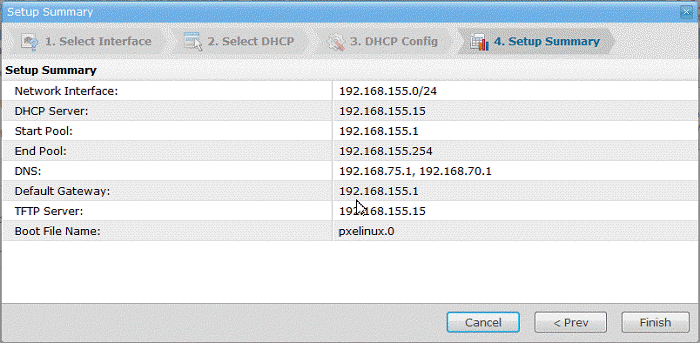

Step 4 -  Setup Summary

This step allows user to check whether all previous setting were configured correctly.

• Click 'Finish' to complete the configuration process or 'Prev' button to return to a previous step.

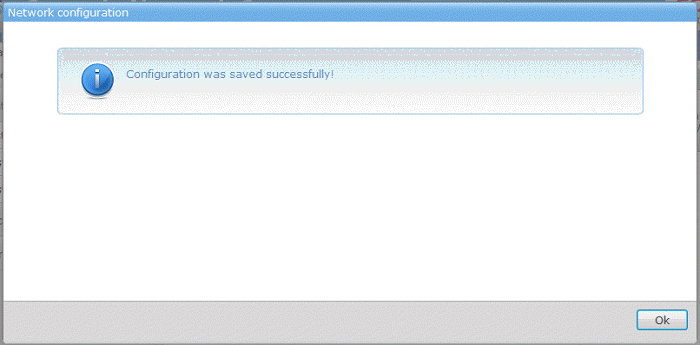

• On successful completion the confirmation message will be displayed.

• Click 'Ok' to close the dialog.

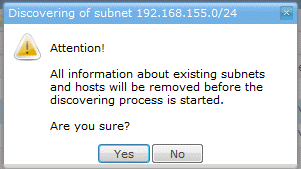

• Select 'Computers', select a host and click the 'Discover all' button.

After the Network configuration has been completed CNC can fully interact with computers in the configured subnet.
