My Port Sets

---



 Port Sets are handy, predefined groupings of one or more ports that can be re-used and deployed across multiple Application Rules and Global Rules.

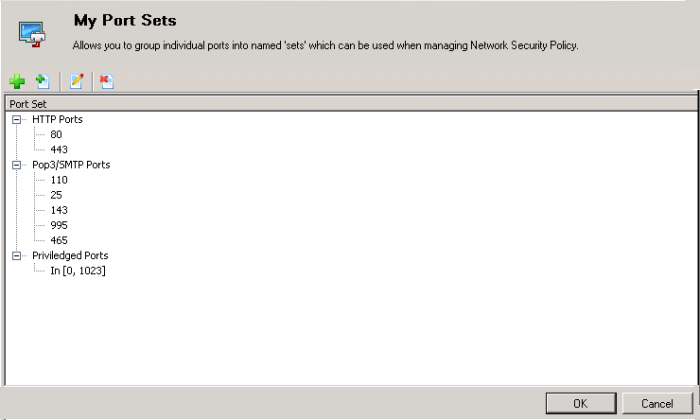

• Click on My Port Sets in Firewall > Common Tasks to open 'My Port Sets' interface.

Note: The name of the Port Set is shown above the actual port numbers that belong to that set. The default port sets shipped with Comodo Internet Security are: HTTP Ports: 80 and 443. These are the default ports for http traffic. The Internet browser uses these ports to connect to the Internet and other networks. POP3/SMTP Ports: 110, 25, 143, 995, 465. These are the ports that are typically used by mail clients like Outlook Express and Win Mail for communication using the POP3, SMTP and IMAP protocols. Privileged Ports: 0-1023. This set can be deployed to create a rule that allows or blocks access to the privileged port range of 0-1023. Privileged ports are so called because it is usually desirable to prevent users from running services on these ports. Network administrators usually reserve or prohibit the use of these ports.

Once opened, the 'My Port Sets' window enables administrators to add new port sets and ports, edit and delete port sets and ports.



Window Specific Controls – My Port Sets
Menu Element	Element Icon	Description
Add New Port Set		Enables the administrator to add a New Port Set
Add New Port		Enables the administrator to add a single port or a port range to the selected Port Set
Edit		Enables the administrator to edit the selected Port Set / Port
Remove		Removes the selected Port Set / Port

To Create a new Port Set

• Define a name for the Port Set.

• Select the port numbers that needs to be added to this named set.

To Define a name for the Port Set

1. Click the  icon in the 'My Port Sets' window. The naming dialog box is displayed.

2. Type a name for the port set. In the image above, Test Port Set is taken as an example.

3. Click OK to confirm the name. The name of the new port set is added to the Port Set list:

To Define Port numbers for the Port Set

1. Select the Port Set for which the ports are defined and click the  icon in the 'My Port Sets' window. The 'Add a New Port' dialog box is displayed.



2. Add a New Port by selecting

• Any, to choose all ports;

• A single port and defining the required port in the combo box beside;

• A port rangeand typing the start and end port numbers in the respective combo boxes.

3. Click OK to confirm. The New Port Set displays the added ports in the main list.



Note: To add more ports to this Port Set or to an existing Port Set, select the appropriate Port Set and repeat the process from the fourth step.

To exclude a Port number from a Port Set



Note: The Exclude option is used to exclude a port number or a range of port numbers from the selected Port Set. This ensures that the excluded port is not used as a part of the selected Port Set.

1. Select the Port Set for which the ports are to be excluded and click the  icon in the 'My Port Sets' window. The 'Add a New Port' dialog box is displayed.

2. Select 'A single port' or 'A port range' option to enable the Exclude checkbox.

Note: The Exclude option remains disabled if Any option is selected in the 'Add a New Port' dialog box.

3. Enter the single port or the port range in the respective combo boxes.

4. Select the Exclude checkbox and click OK to confirm. The excluded port number is displayed in the main Port Set list:

To Edit the name of an existing Port Set

1. Select the name of the Port Set in the list (e.g. HTTP Ports) and click the  icon to bring up the 'Edit Port Set Name' dialog box.


2. Modify the name and click OK to confirm.

To Edit the existing Port numbers in a Port Set

1. Select the Port number in the appropriate Port Set and click the  icon to bring up the 'Edit Port' dialog box.


2. Modify the Port number and click OK to confirm.

To Delete a Port Set or a Port number

1. Select the required Port Set or Port number and click the  icon. The following confirmation dialog box is displayed.

2. Click Yes to delete the selected item.



---
