Main Settings

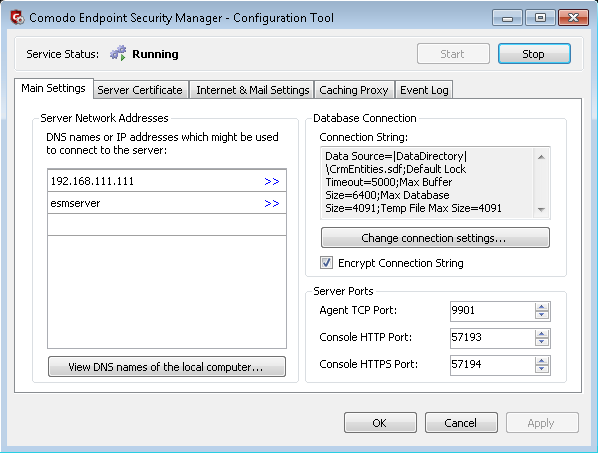

The Main Settings page displays the ESM server IP addresses and/or hostnames in the 'Server Network Addresses' field and Database connection settings, Console Port, Secure Console Port and Agent Ports at the right.
-
To add an IP or Hostname, simply begin typing in the blank row beneath those already listed. Click 'OK' to confirm
-
To change port numbers, simply type the new port number in the appropriate field. Computers that have standalone Comodo Internet Security (CIS) installed on them can be connected to the ESM service via the CIS interface (directly from the endpoint itself) through this port. See section 'How to Connect CIS to ESM at the Local Endpoint' for information on connecting endpoints locally to ESM.
-
To change the database connection settings, click 'Change connection settings'
-

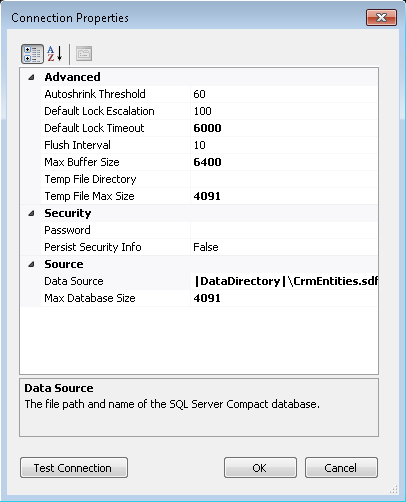

Edit the parameters directly in the 'Connection Properties' dialog
-
To test whether the connections settings are appropriate click 'Test Connection'
-
Click OK for your changes to take effect
-
You will need to enter the hostname/IP and console port in the address bar of your browser to connect to the ESM server. For example, https://192.168.111.111:57194 will open the ESM console hosted at that IP address using the secure console port
-
To facilitate external connections, you may have to open the listed port numbers on your corporate firewall.
